Unlock Precision: Introducing the MSL Series

MSL Series: Low Profile Ball Type Linear Guideway

Features
The design of the MSL series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the MSL series more suitable for high-speed, automation machines and applications where space is limited. The retainer is designed to hold the balls in the block even when it is removed from the rail.

Applications
Mainly used for high-speed and low and load automation equipment: 3c electronics, chip automatic sorting machines, automatic dispensing machines, LED sapphire laser slicing machines, automatic spot welding machines, three-axis robots, high-speed SMT machines and other semiconductor and automation industries.

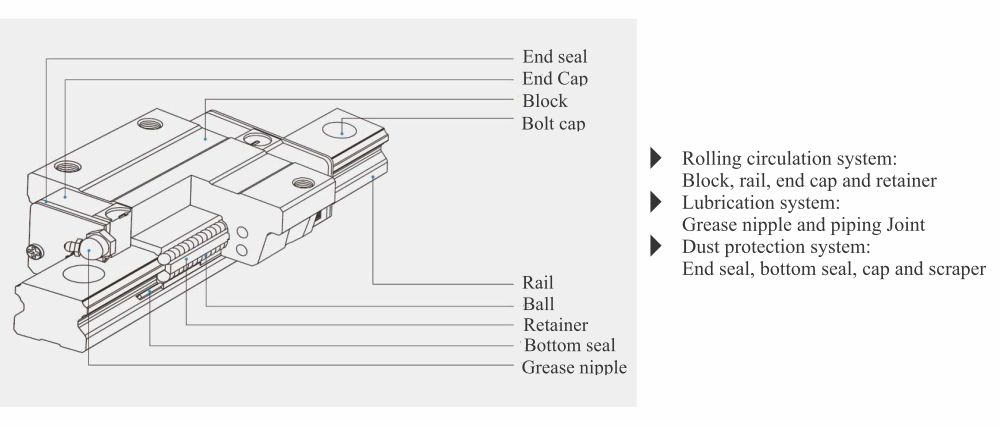

Construction of MSL Series

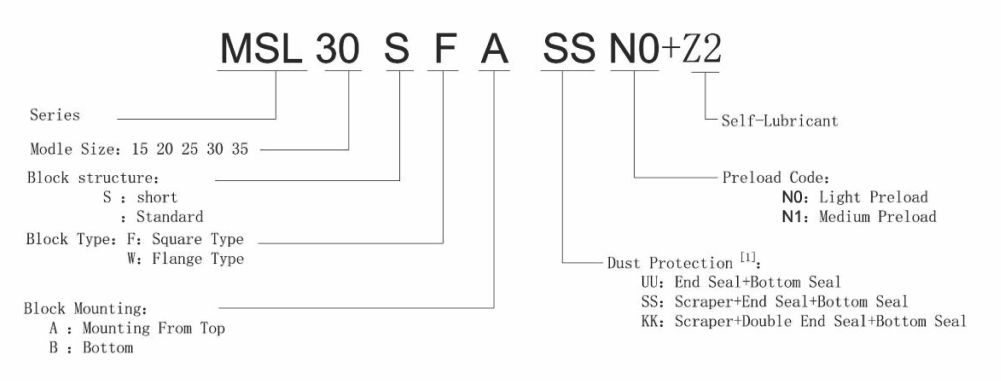

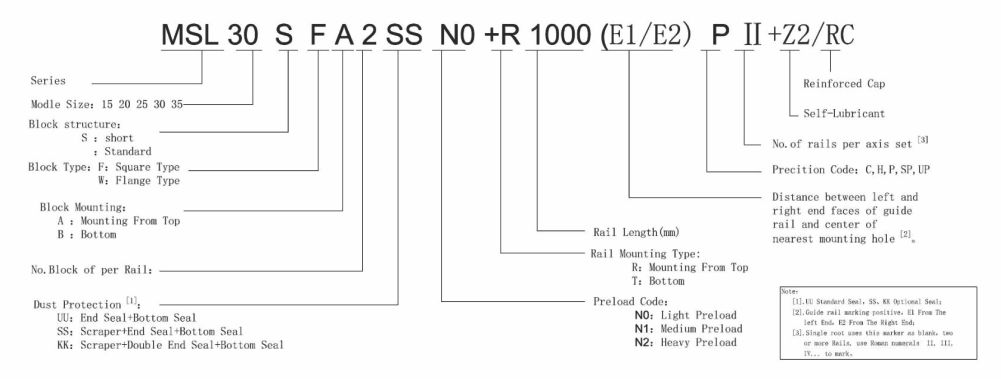

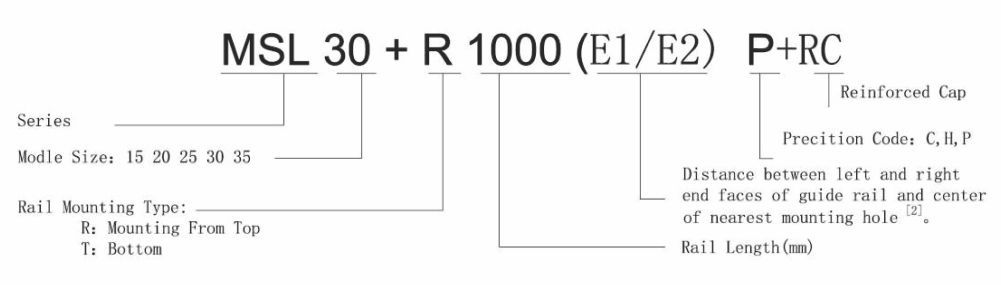

MSL series linear guideways are classified into non-interchangeable and interchangeable types. The sizes of these two types are the same as one another. The main difference is that the interchangeable type of blocks and rails can be freely exchanged and they can maintain P-class accuracy. Because of strict dimensional control, the interchangeable type linear guideways are a wise choice for customers when rails do not need to be matched for an axis. The model number of the MSL series identifies the size, type, accuracy class, preload class, etc.

(1) Non-interchangeable type
