Enhance Your Precision: Discover the MSQ Series
MSQ series: A ball linear guide pair
Features
(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. MSQ series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of MSQ series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the MSQ series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.
Applications
Grinding machines, milling machines, lathes, drilling machines, electrical discharge machining machines, punching machines, precision measuring instruments, woodworking machines, handling machines, conveying devices, etc.

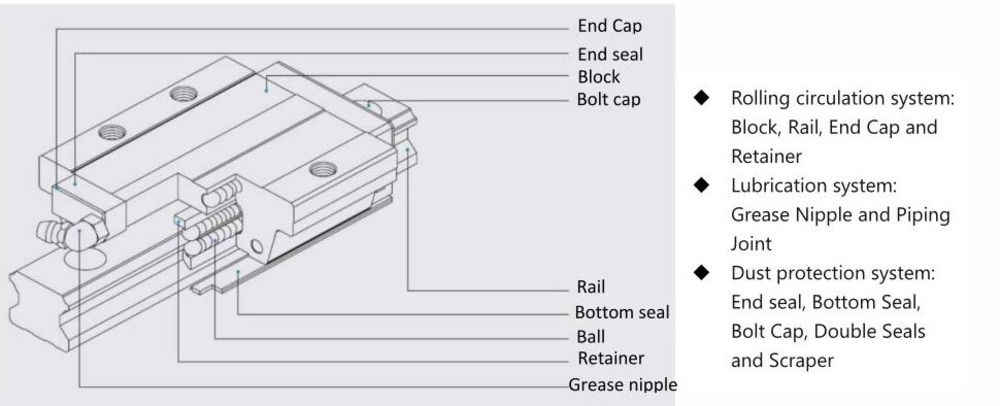

Construction of MSQ Series

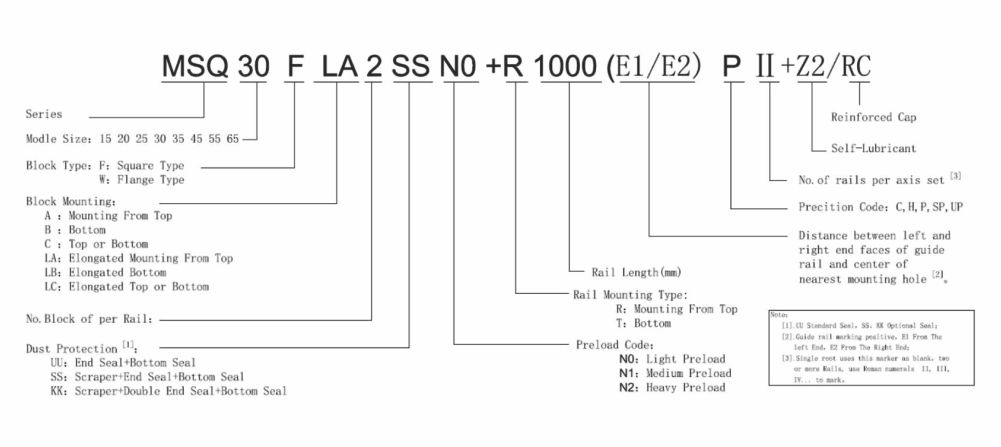

MSQ series guideways can be classified into non-interchangeable and interchangeable types. The sizes are identical. The only difference between the two types is that the interchangeable type of blocks and rails can be freely exchanged and their accuracy can reach up to P class. The model number of MSQ series contains the size, type, accuracy class, preload class, etc.

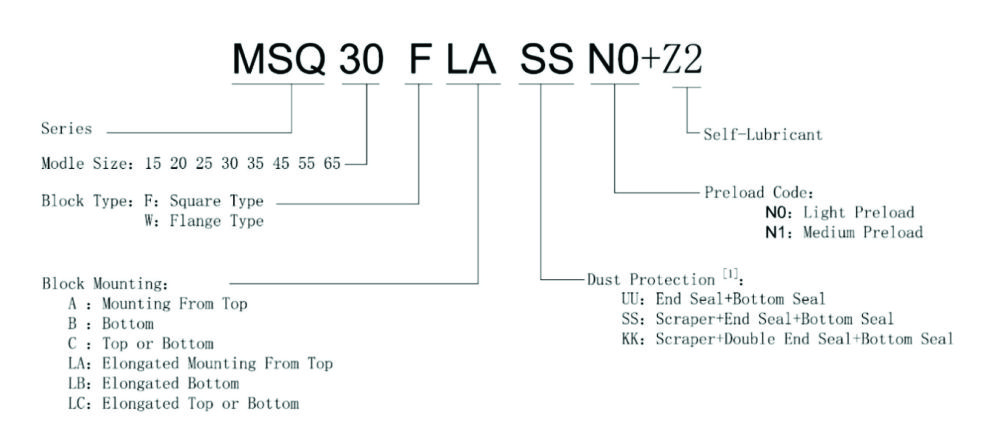

- Model Number of MSQ Block

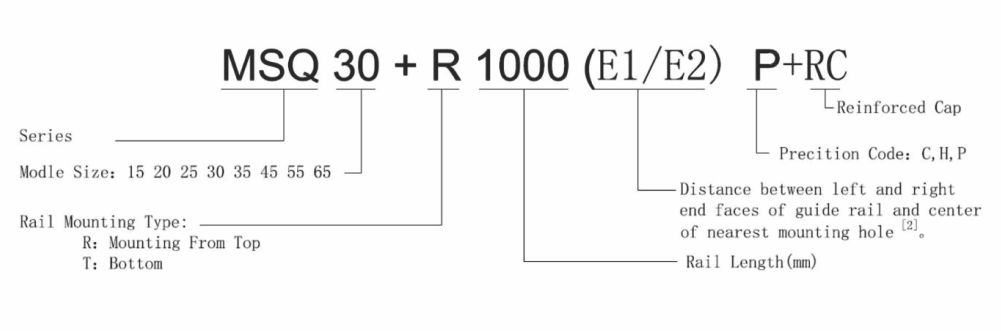

- Model Number of MSQ Chain

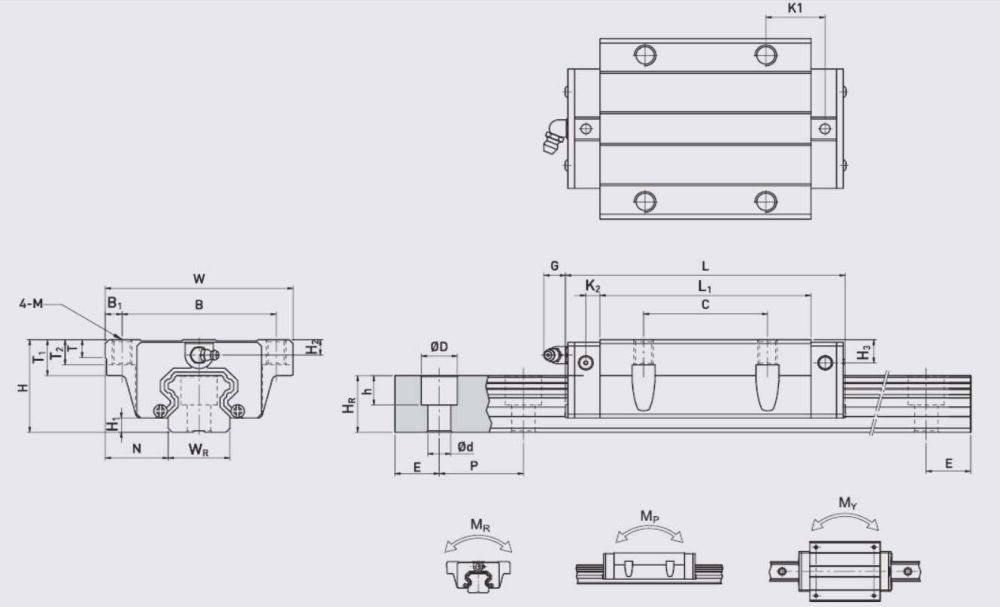

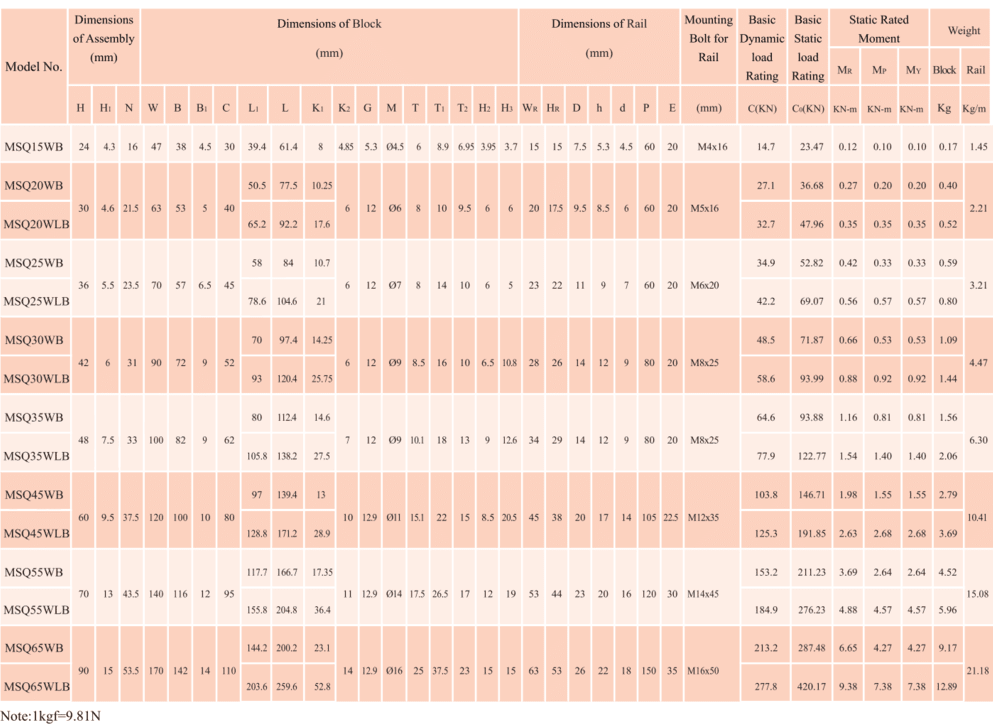

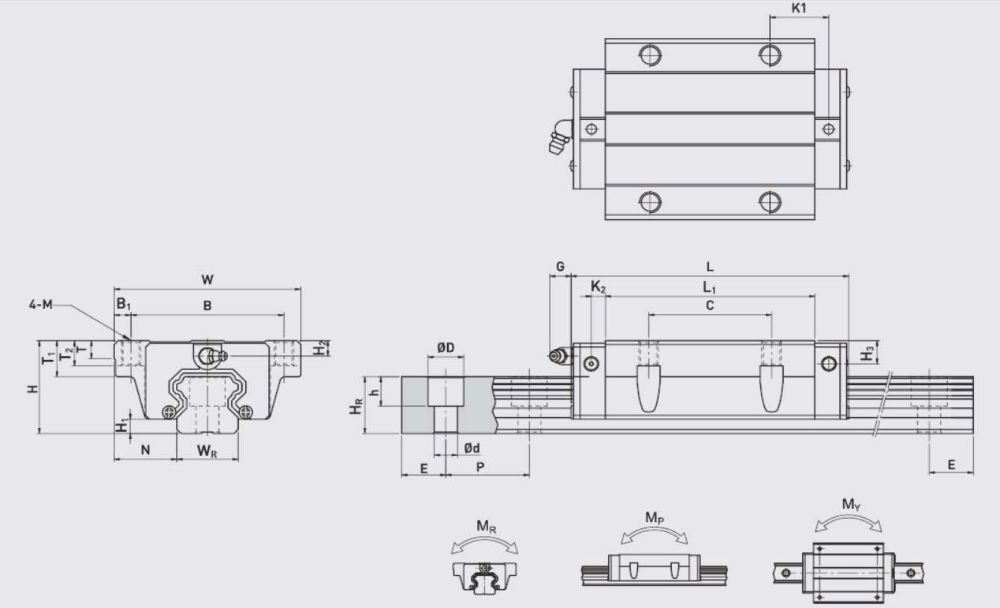

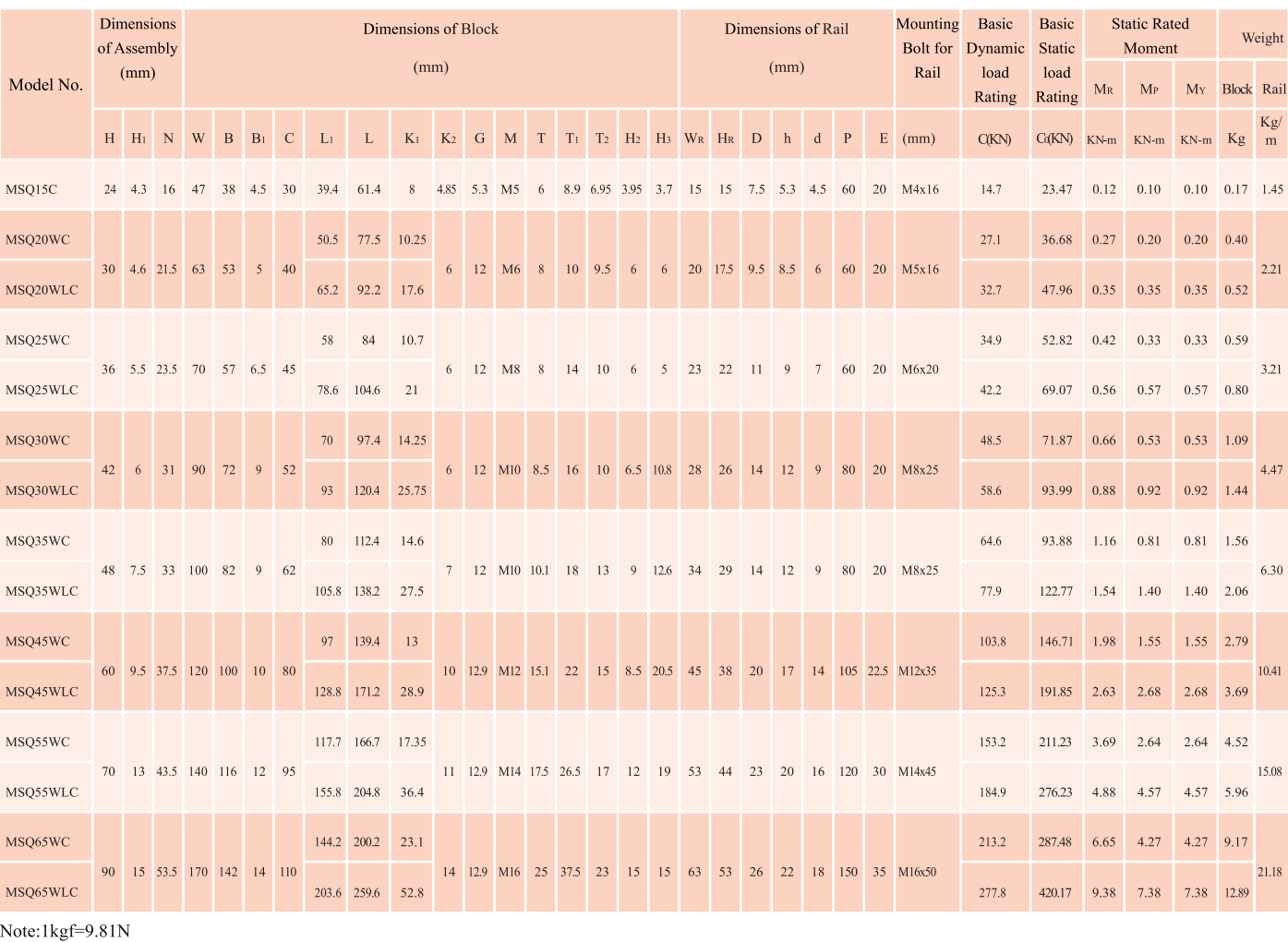

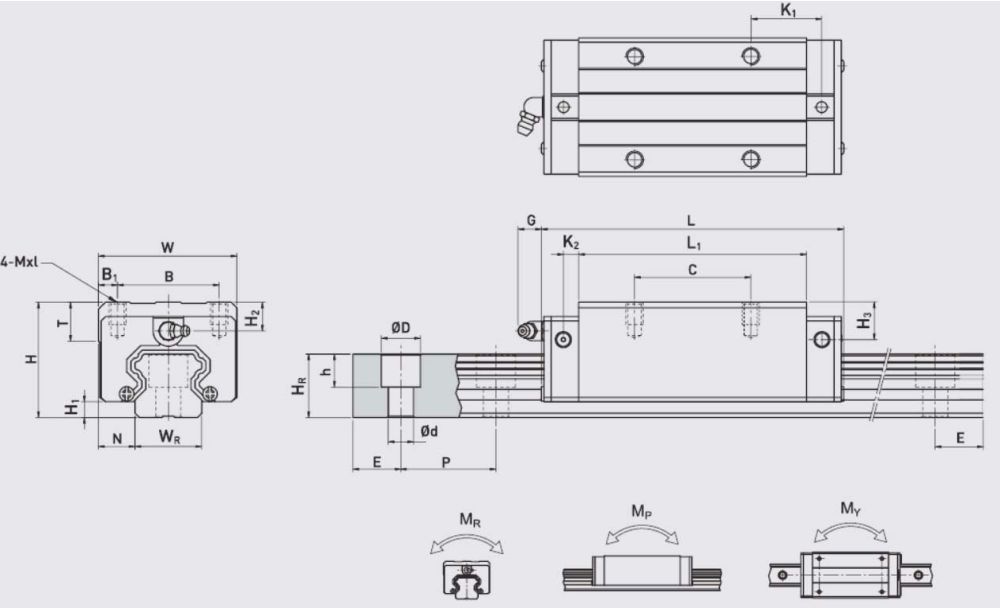

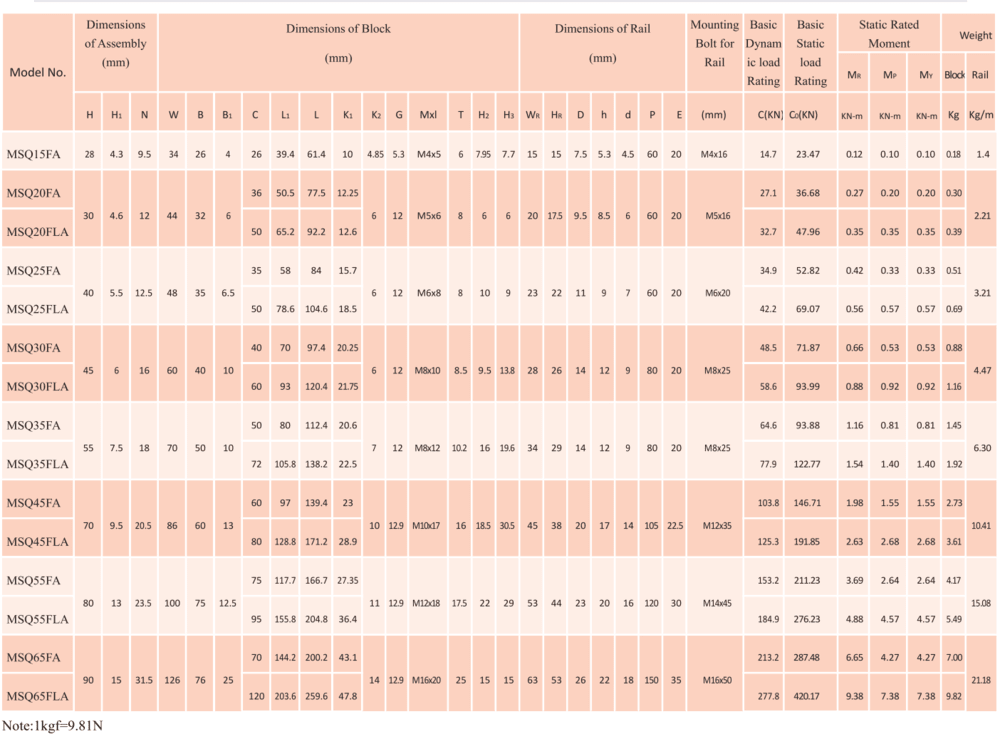

Dimensions for MSQ Series
